Gareth's Tips, Tools, and Shop Tales - Issue #60

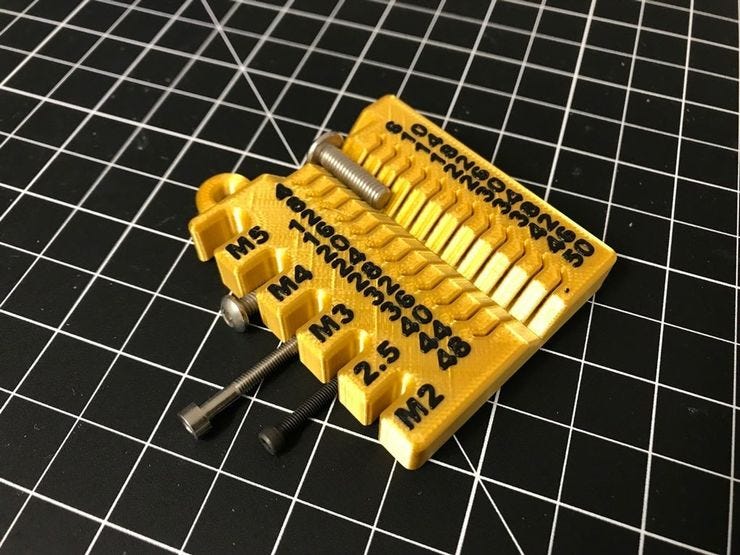

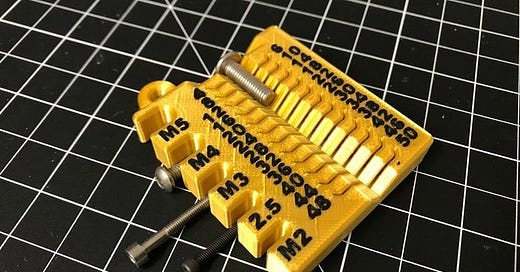

3D-Printable Metric Screw Guide
3D printer manufacturer, Prusa, has produced this printable guide for quickly identifying metric screw sizes. "Quickly sort and measure metric screws and bolts in sizes ranging from M2, M2.5, M3, M4, or M5 with lengths from 4mm to 50mm. Screw diameter sizing is a simple go/no-go clearance check which is faster than threading in a screw. Note that this doesn't tell you anything about screw pitch..."

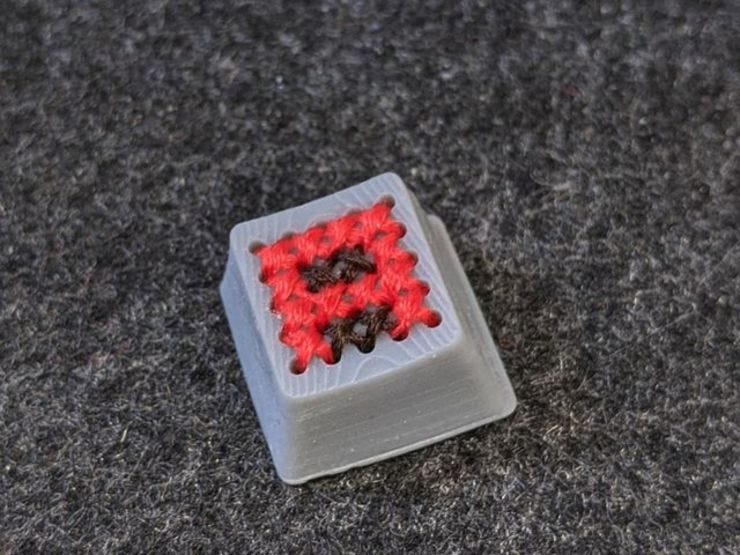

Hand-Stitched Keycaps?
Via Maker Update comes this fun 3D print. It's a keycap with an embroidery matrix on it so that you can cross-stitch your own keyboard letters. I just wonder how quickly the yarn would degrade and the keys would become filthy from daily use.
Cutting Metal Without an Angle Grinder
This Instructable outlines ten different ways that you can confidently cut metal without an angle grinder, metal bandsaw, or similar common metal cutting tool. [via Maker Update]
Life Hack
For years, I did what most wine drinkers do when opening up a bottle of wine. I picked, poked, and peeled away the foil before using a cork screw. Then, I saw a pro at work, a friend who'd clearly figured out the shortest distance between a new bottle of hootch and the next pour. Just screw right into the top foil. The cork will tear through it as you pull up the cork out. You usually have a few torn remnants to peel off, but it's a lot faster than picking at the foil or using a foil cutter tool. Just think of the few seconds you save that can be better spent drankin'!
Maker Slang
New, periodic section. Got some fun/useful jargon, tech term, or maker slang to share?
Swarf - Pieces of metal, wood, or plastic debris created during machining, woodworking, or similar subtractive processes. Not to be confused with kerf, which is the cut made into a material. Kerf is commonly understood to be the width of the material that's removed during cutting, and it's important to consider kerf thickness when measuring and cutting. [Bob Knetzger]
Monkey tight/Gorilla tight/Konged - Monkey tight = tight enough, Gorilla tight = too tight, Konged = immovable. [Sam Freeman, Ross Hershberger]
Posi-Lock Connectors
Via Mark Frauenfelder's new newsletter The Magnet, I was introduced to another shop tips newsletter I'm now enjoying, Joshua Shachter's Wheelhouse. In Wheelhouse #10, Josh writes about a wire connection type I've never used: posi-lock connectors. These plastic, screw-together connectors require no soldering and form a strong, easily removable connection.
Shop Talk
In response to my tip on remembering lock combinations, reader FastEddie writes:
"If you have a secret 10 letter word without duplicate letters that you can remember (like BLACKSMITH) - you can encode the combo into letters and write them on the back in code. 16-20-39 turns into BS-LH-AT. Appliance stores etc. that allowed "haggling" used to encode the store's cost or the lowest price the salesman could sell for right on the back of the price tag. Then, they knew how low they could go. Pick a secret word and never have to cut another lock. Here's a list of ciphers."
***
