Gareth's Tips, Tools, and Shop Tales - Issue #52
Using Clamps to Spread Things Apart
In this "One Day Build" video on Tested, where Adam Savage is upgrading a rickety workbench, he shares a great tip. You can use Quick-Grip-type bar clamps to spread objects apart, too. To do this, all you need to do is reverse the sliding clamp on the bar so it's moving away from the fixed clamp.
Lazy Susans in the Shop and in Projects
More Savage content. In this video, Adam talks about his love of swivel bearings (aka lazy Susans). Cheap aluminum models are great for low-weight applications, but if you want to rotate something heavy, you need a heavy duty swivel. Adam extols the virtues of the Rockler Heavy-Duty Swivel Bearing and the 6" HD Swivel Bearing. But, it looks like you can get much cheaper, highly user-rate heavy-duty (1000 pound capacity) swivels, too.
Cool Trick for Avoiding Splitting Soft Wood
Here's a cool trick from the Toolbxapp IGram page. If you're drilling into soft wood that would normally require drilling a pilot hole to avoid splitting, you can use the reverse pilot hole trick instead. First, sink your screw as normal, but only until it bites well into the wood. Now, reverse the drill and apply downward pressure to force the screw in most of the way. Then, re-set the drill to forward drilling and drive the screw home. No splitting. Neat!
Getting More from Your Random Orbital Sander
This Stumpy Nubs video has some great tips on overcoming problems with an orbital sander, like patiently stepping through several incremental grits when sanding to remove spirals and pigtails and using high-quality paper as it's less likely to tear and create pigtails. He also recommends using an abrasive cleaning stick to extend the life of your disks. Oh, and another tip: Store your sander with a sanding pad on it. Otherwise, over time, the weight of the tool will begin to flatten the nylon Velcro hooks on the bottom that hold the disks in place.
Step Bit Shoot-Out

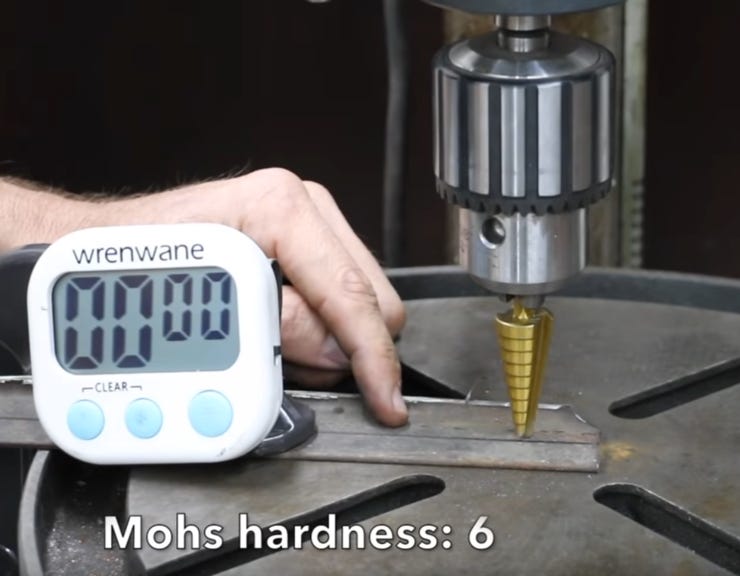

On the always informative Project Farm, Todd does his usual admirably rigorous testing, this time on step bits. He tests a wide range of bits, from one costing under $7, all the way up to $50. In the end, the DeWalt Step Bit ($43) did best over all, but the Temo bit was a close second. He lists the Temo bit at $30, $13 cheaper than the DeWalt. Sadly, Amazon offers this bit at the same price as the DeWalt (so. shop around to find it cheaper).
Maker's Muse
I've written about folks using their laptop screen as a light table for tracing. Here's another great off-book use (from the Tiny Furniture IGram page) -- using your screen as a photo backdrop for small items.
Shop Talk

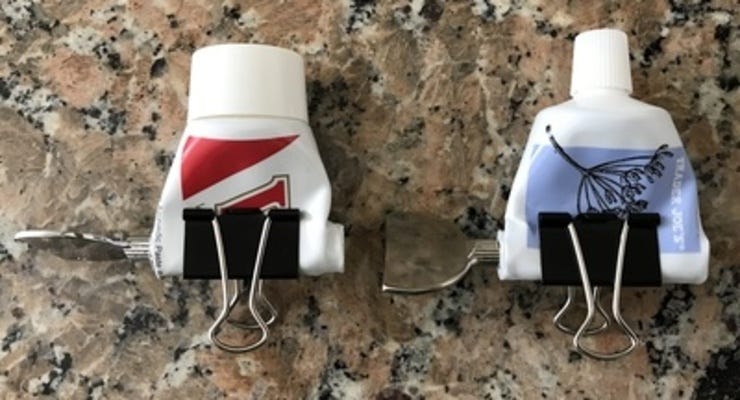

On Cool Tools, reader LarryA2010 responded to my item about using binder clips for hanging paint tubes and similar items (GTTST #49):

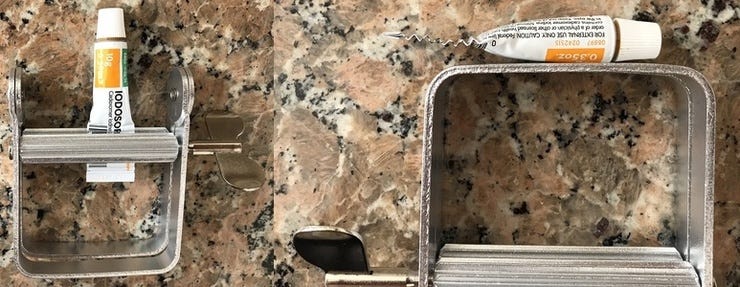

The only things missing from Sarah Bentley's tube board are some some Stainless Tube Toothpaste Squeezer Keys and a $9 knock-off Squeeze Roller Metal Tube Wringer. They both squeeze every last drop out of your tubes and are pretty good looking.
***
